【E479】基于扩展TOP的多无人机任务分配算法测试基准

项目编号：E479

文件大小：352K

源码说明：带中文注释

开发环境：Python

简要概述：

基于扩展TOP（Team Orienteering Problem）的多无人机任务分配算法测试基准

Multi-UAV Task Assignment Benchmark

多无人机任务分配算法测试基准

Introduction

A benchmark for multi-UAV task assignment is presented in order to evaluate different algorithms. An extended Team Orienteering Problem is modeled for a kind of multi-UAV task assignment problem. Three intelligent algorithms, i.e., Genetic Algorithm, Ant Colony Optimization and Particle Swarm Optimization are implemented to solve the problem. A series of experiments with different settings are conducted to evaluate three algorithms. The modeled problem and the evaluation results constitute a benchmark, which can be used to evaluate other algorithms used for multi-UAV task assignment problems.

Please refer to the paper to see more detail.

Xiao, K., Lu, J., Nie, Y., Ma, L., Wang, X., Wang, G.: A Benchmark for Multi-UAV Task Assignment of an Extended Team Orienteering Problem. arXiv preprint arXiv:2009.00363 (2020)

Usage

1. Algorithm input and output

Algorithm input includes vehicle number (scalar), speeds of vehicles (n×1 array), target number (scalar n), targets ((n+1)×4 array, the first line is depot, the first column is x position, the second column is y position, the third column is reward and the forth column is time consumption to finish the mission), time limit (scalar). The code below is the initialization of the class GA in ga.py.

def __init__(self, vehicle_num, vehicles_speed, target_num, targets, time_lim)

There should be a function called run() in the algorithm class, and the function should return task assignment plan(array, e.g. [[28, 19, 11], [25, 22, 7, 16, 17, 23], [21, 26, 12, 9, 6, 3], [5, 15, 1], [18, 20, 29]], each subset is a vehicle path) and computational time usage (scalar).

2. Evaluate

You can replace one algorithm below with another algorithm in evaluate.py, and then python evaluate.py. If you don't want to evaluate three algorithm together, you should modify the code properly( this is easy).

ga = GA(vehicle_num,env.vehicles_speed,target_num,env.targets,env.time_lim)

aco = ACO(vehicle_num,target_num,env.vehicles_speed,env.targets,env.time_lim)

pso = PSO(vehicle_num,target_num ,env.targets,env.vehicles_speed,env.time_lim)

ga_result=p.apply_async(ga.run)

aco_result=p.apply_async(aco.run)

pso_result=p.apply_async(pso.run)

p.close()

p.join()

ga_task_assignmet = ga_result.get()[0]

env.run(ga_task_assignmet,'GA',i+1,j+1)

re_ga[i].append((env.total_reward,ga_result.get()[1]))

env.reset()

aco_task_assignmet = aco_result.get()[0]

env.run(aco_task_assignmet,'ACO',i+1,j+1)

re_aco[i].append((env.total_reward,aco_result.get()[1]))

env.reset()

pso_task_assignmet = pso_result.get()[0]

env.run(pso_task_assignmet,'PSO',i+1,j+1)

re_pso[i].append((env.total_reward,pso_result.get()[1]))

3. About reinforcement learning

In Env() in evaluate.py, function step is used for reinforcement learning. Because this is still being developed, we cannot supply a demo. If your algorithm is reinforcement learning, you can try to train it with Env(). Your pull request and issue are welcome.

目录│文件列表:

 └ multi-uav-task-assignment-benchmark

    └ multi-uav-task-assignment-benchmark

       │ aco.py

       │ evaluate.py

       │ ga.py

       │ large_size_result.csv

       │ max_reward_large.png

       │ max_reward_medium.png

       │ max_reward_small.png

       │ max_time_large.png

       │ max_time_medium.png

       │ max_time_small.png

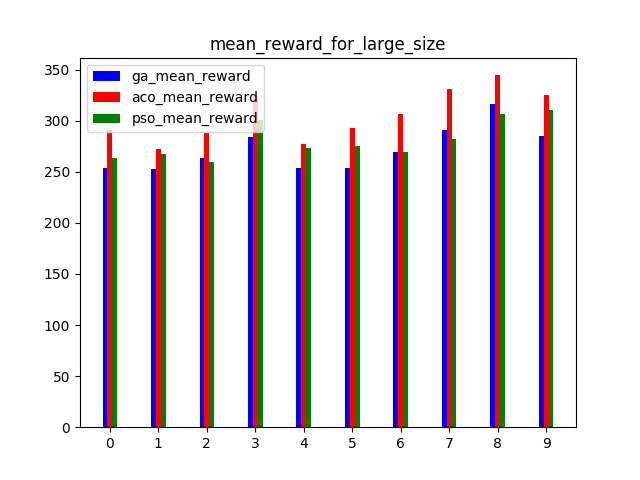

       │ mean_reward_large.png

       │ mean_reward_medium.png

       │ mean_reward_small.png

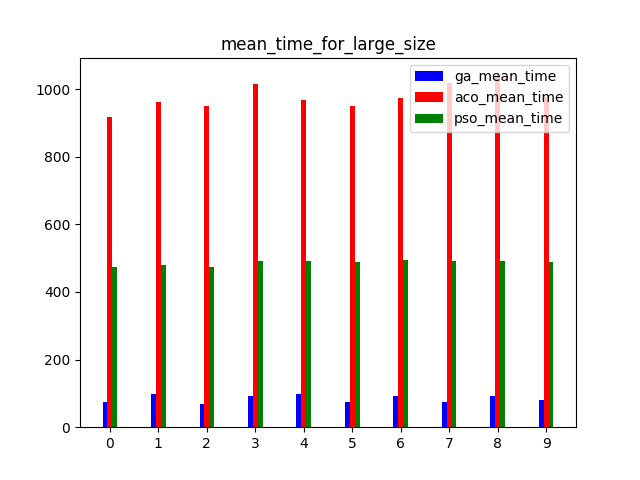

       │ mean_time_large.png

       │ mean_time_medium.png

       │ mean_time_small.png

       │ medium_size_result.csv

       │ pso.py

       │ small_size_result.csv

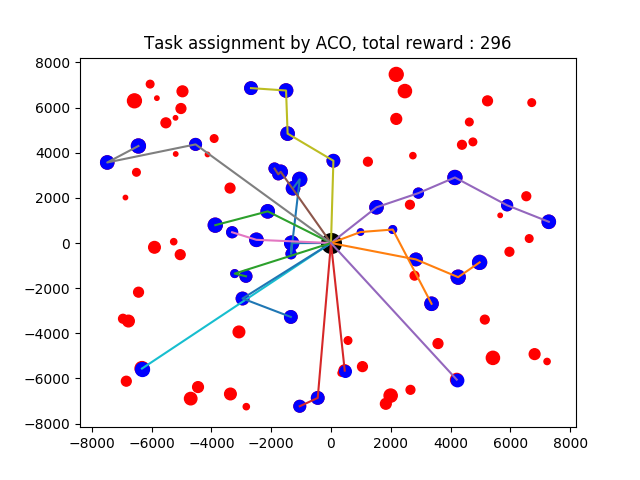

       └ task_pic

          ├ large

          │  └ ACO-1-1.png

          ├ medium

          │  └ ACO-1-1.png

          └ small

             └ ACO-1-1.png
