【P239】STM32-RFM95原理图+PCB图

项目编号：P239

文件大小：1.49M

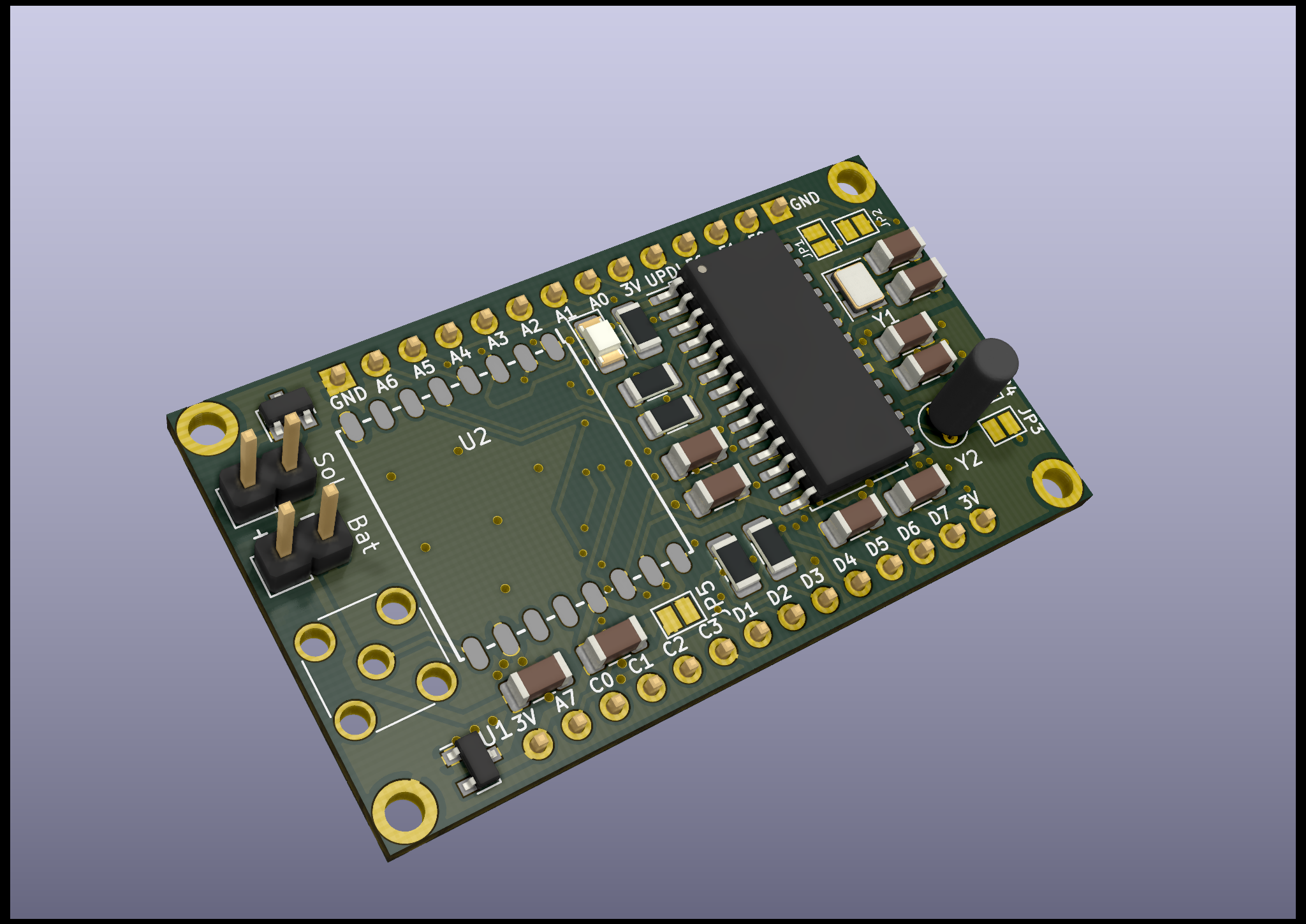

图纸说明：PCB图

开发环境：KiCAD

简要概述：

请注意，大多数组件都是可选的：

• A LED to flash

• I2C 4K7 pull up resistors

• A lot of capacitors (mounting a single 1uF will do in most situations)

• 32.768kHz crystal

• 24MHz crystal

• MCP1700 regulator with 1uA idle current

• Schottky diode for charging NiMH batteries from a solar panel

• Voltage divider for measuring battery voltage
