【E534】80键分体键盘开源

项目编号：E534

文件大小：15M

源码说明：带中文注释

开发环境：C编译器

简要概述

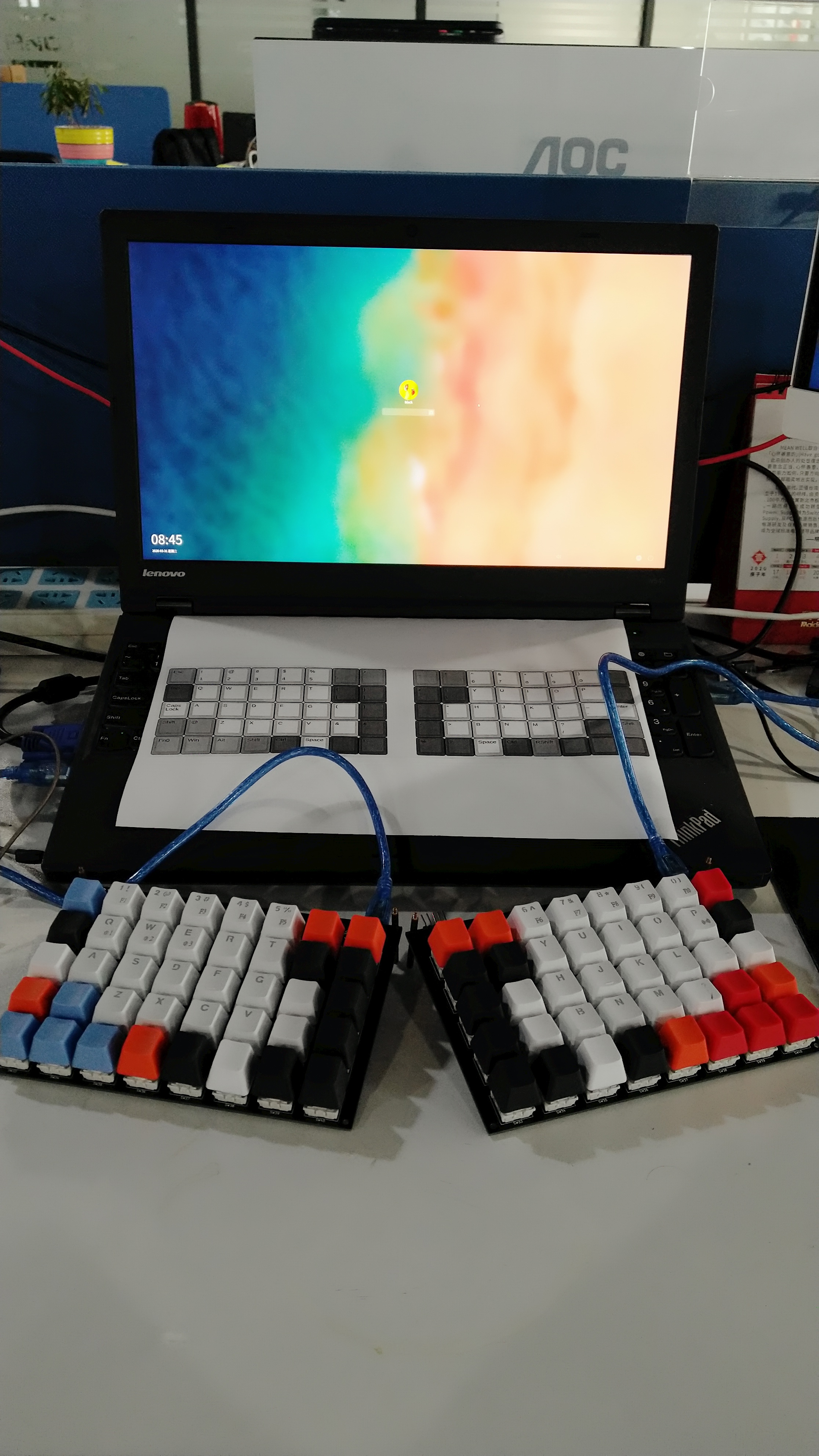

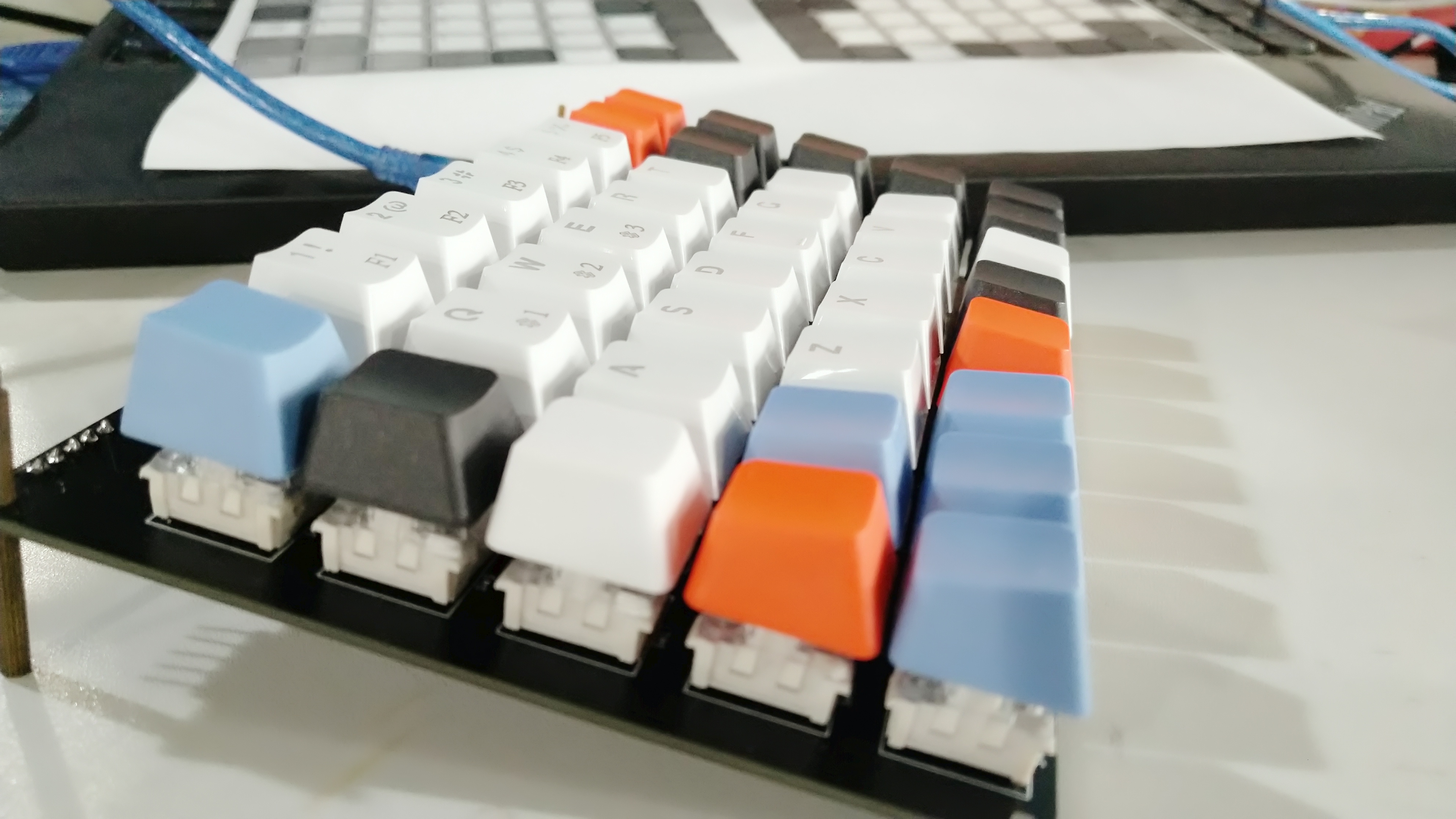

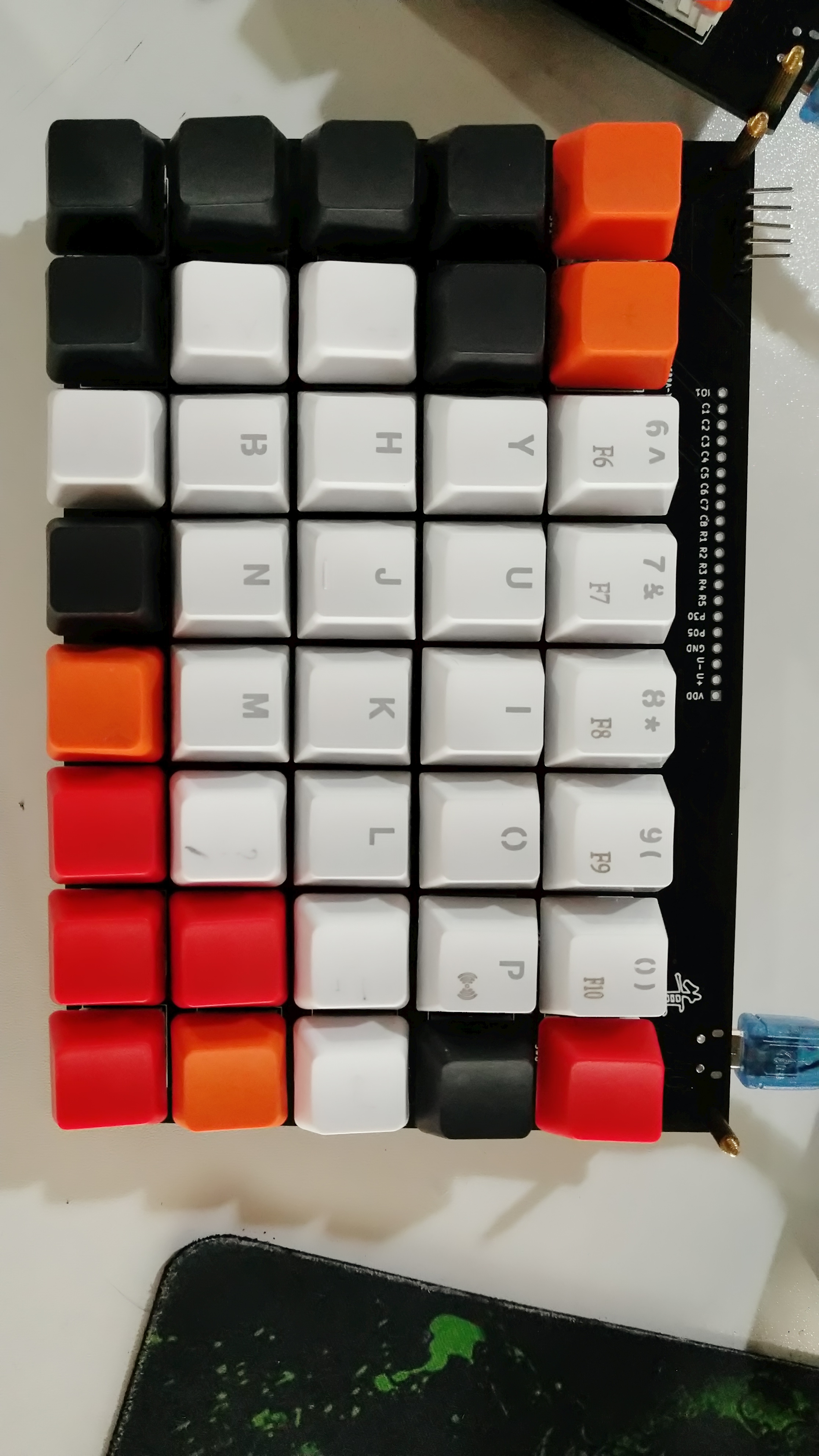

80键分体键盘，采用非常便宜的单片机和USB HID接口芯片。目的就是打造一款低成本的机械键盘DIY方案。

hard 文件夹内是键盘的硬件设计文档，PCB设计使用的是KiCad开源软件。

soft 文件夹内是键盘的软件实现。逻辑部分用的是新唐的N76E003单片机。USB接口使用的是 CH9328 USB HID 芯片。

目前的键位设计可以通过 http://www.keyboard-layout-editor.com/#/ 站点查看。 打开上述网页点击“Raw data”选项卡，粘贴一下内容即可渲染出键位设计。如有对键位设计有建议的可以在评论区留言，谢谢！

[{c:"#6495ed"},"Esc",{c:"#cccccc"},"!\n1","@\n2","#\n3","$\n4","%\n5",{c:"#ff4500"},"~\n`","*",{x:1},"_","+",{c:"#cccccc"},"^\n6","&\n7","*\n8","(\n9",")\n0",{c:"#bb0000"},"Bs"],

[{c:"#444444"},"Tab",{c:"#cccccc"},"Q","W","E","R","T",{c:"#444444"},"{\n[","}\n]",{x:1},"+\n=","|\n\\",{c:"#cccccc"},"Y","U","I","O","P",{c:"#444444"},"del"],

[{c:"#cccccc"},"Caps Lock","A","S","D","F","G","(",{c:"#444444"},")",{x:1},":\n;",{c:"#cccccc"},"<\n,","H","J","K","L","_\n-","Enter"],

[{c:"#ff4500"},"Shift",{c:"#6495ed"},"@",{c:"#cccccc"},"Z","X","C","V","&",{c:"#444444"},"#",{x:1},"\"\n'",{c:"#cccccc"},">\n.","B","N","M","?\n/",{c:"#bb0000"},"↑",{c:"#ff4500"},"RShift"],

[{c:"#6495ed"},"Fn0","Win","Alt",{c:"#ff4500"},"Shift",{c:"#cccccc"},"Space",{c:"#444444"},"Ctrl","~","!",{x:1},"%","?","Ctrl",{c:"#cccccc"},"Space",{c:"#ff4500"},"Fn0",{c:"#bb0000"},"←","↓","→"],

[{y:0.5,c:"#6495ed"},"F0",{c:"#cccccc"},"F1","F2","F3","F4","F5",{c:"#ff4500"},"Num Lock","",{x:1},"","",{c:"#cccccc"},"F6","F7","F8","F9","F10",{c:"#bb0000"},""],

[{c:"#444444"},"select",{c:"#cccccc"},"F11","F12","mail",{a:7},"","",{c:"#444444",a:4},"","",{x:1},"","",{c:"#cccccc"},"7\nHome",{a:4},"8\n↑","|",{a:4},"/","",{c:"#444444"},""],

[{c:"#cccccc"},"prev","play","next","stop",{a:7},"","",{a:4},"",{c:"#444444"},"",{x:1},"",{c:"#cccccc"},"","4\n←",{a:4},"\"",{a:4},":",{a:4},"*","",""],

[{c:"#ff4500",a:4},"vol dn",{c:"#6495ed"},"mute",{c:"#cccccc"},"vol up","app",{a:7},"","",{a:4},"",{c:"#444444"},"",{x:1},"",{c:"#cccccc"},"","1\nEnd","{","}","-",{c:"#bb0000",a:4},"",{c:"#ff4500"},""],

[{c:"#6495ed"},"Fn0","Fn2","Fn4",{c:"#ff4500",a:7},"",{c:"#cccccc"},"",{c:"#444444"}

目录│文件列表:

 └ XS40

    ├ .vscode

    │  └ settings.json

    ├ doc

    │  │ 43c635f29237a9f031e426376ea0fd5.jpg

    │  │ 74a61ceb1c933b0123dbee454cc0db6.jpg

    │  │ a8b779794b4cff2eecfce481d46be4e.jpg

    │  └ b146eeb9497ea70faab857080b56009.jpg

    ├ hard

    │  ├ font

    │  │  │ ABCDEFGHIJKLMNOPQRSTUVWXYZ.docx

    │  │  │ Da_Bronx_Sans_Font_Family_-_12_Fonts-GraphicEx.com.zip

    │  │  └ Dosis.zip

    │  └ PCB

    │     │ ch9328.dcm

    │     │ ch9328.lib

    │     │ CH9328.xlsx

    │     │ CH9328DS1.PDF

    │     │ DS_N76E003_SC_Rev0.04.pdf

    │     │ fp-info-cache

    │     │ MCU_Nuvoton.bck

    │     │ MCU_Nuvoton.dcm

    │     │ MCU_Nuvoton.lib

    │     │ N76E003AT20.xlsx

    │     │ sym-lib-table

    │     │ XS40-cache.lib

    │     │ XS40-rescue.dcm

    │     │ XS40-rescue.lib

    │     │ XS40.dsn

    │     │ XS40.kicad_pcb

    │     │ XS40.kicad_pcb-bak

    │     │ XS40.net

    │     │ XS40.pro

    │     │ XS40.sch

    │     │ XS40.sch-bak

    │     │ XS40v0.1.7z

    │     │ _autosave-XS40.pro

    │     └ gerber

    │        │ XS40-B_Cu.gbr

    │        │ XS40-B_Mask.gbr

    │        │ XS40-B_Paste.gbr

    │        │ XS40-B_SilkS.gbr

    │        │ XS40-Edge_Cuts.gbr

    │        │ XS40-F_Cu.gbr

    │        │ XS40-F_Mask.gbr

    │        │ XS40-F_Paste.gbr

    │        │ XS40-F_SilkS.gbr

    │        │ XS40-NPTH-drl_map.ps

    │        │ XS40-NPTH.drl

    │        │ XS40-PTH-drl_map.ps

    │        └ XS40-PTH.drl

    └ soft

       ├ Common

       │  │ bsp_user_lib.c

       │  │ bsp_user_lib.h

       │  │ Common.c

       │  └ Delay.c

       ├ doc

       │  │ Keyboard Font.docx

       │  └ keyMap.png

       ├ Include

       │  │ Common.h

       │  │ Delay.h

       │  │ Function_Define.h

       │  │ N76E003.h

       │  └ SFR_Macro.h

       ├ Sample_Code

       │  └ GPIO

       │     │ GPIO.uvgui.Black

       │     │ GPIO.uvopt

       │     │ GPIO.uvproj

       │     │ GPIO_uvopt.bak

       │     │ GPIO_uvproj.bak

       │     │ Nu_Link_8051_Driver.ini

       │     ├ Code

       │     │  │ GPIO.C

       │     │  │ keyMap.h

       │     │  │ keyScanCode.h

       │     │  │ usb_hid_keys.h

       │     │  └ .vscode

       │     │     └ settings.json

       │     ├ LST

       │     │  │ Common.lst

       │     │  │ Delay.lst

       │     │  │ GPIO.lst

       │     │  │ GPIO.m51

       │     │  │ PCF8563.lst

       │     │  │ STARTUP.lst

       │     │  └ ws2812.lst

       │     └ Output

       │        │ Common.obj

       │        │ Delay.obj

       │        │ ExtDll.iex

       │        │ GPIO

       │        │ GPIO.build_log.htm

       │        │ GPIO.hex

       │        │ GPIO.lnp

       │        │ GPIO.obj

       │        │ GPIO.plg

       │        │ L.hex

       │        │ R.hex

       │        └ STARTUP.obj

       └ Startup

          └ STARTUP.A51
